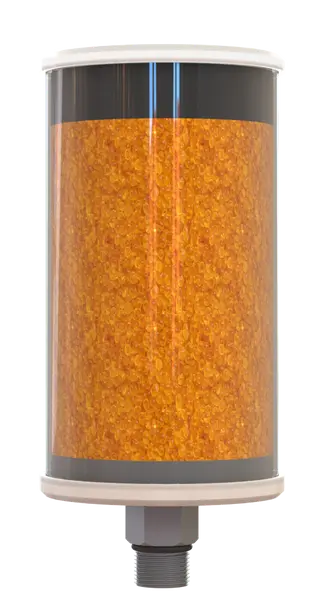

Breathable dryer for 200L barrel, non-refillable
The desiccant breather for 200L drums effectively prevents moist ambient air from entering the container. It has been specially developed for the storage and handling of hygroscopic or sensitive substances, where even small amounts of moisture can lead to contamination or chemical reactions.
During pressure equalization, the incoming air is cleaned by the integrated 3-micron filter and then dried by the adsorbent material. This ensures that the air entering the barrel is completely free of moisture and particles.

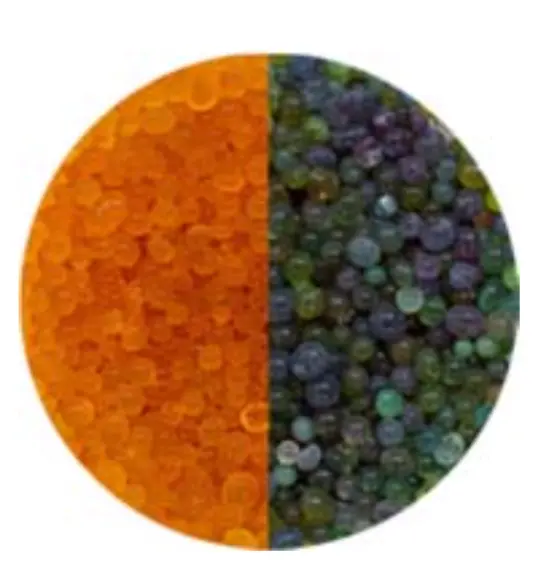

The desiccant changes color from orange to green during operation, so that the condition of the filter is visible at all times. Once the color change is complete, the dryer is replaced. One filling is sufficient for approximately 45 emptying cycles of a 200L barrel.
The breath dryer is non-refillable and made of PMMA and aluminum. Thanks to its robust construction and NBR seal, it is suitable for continuous use in industrial environments.
Typical applications:
Isocyanates and polyols in PUR systems
Gasoline storage and testing facilities
Insulating oils for transformers
Hydraulic and transmission oils
Epoxy resins, catalysts, and chemical processes
Technical specifications
| feature | Description |
| Article description | Breathable dryer for 200L barrel, non-refillable |
| Housing material | PMMA and aluminum |
| gasket | NBR |
| connection | 1" external thread |
| filter fineness | 3 microns |
| adsorbent material | Silica and activated carbon |
| Functional principle | Filters and dries incoming air, color change orange → green |
| Seats / capacity | Sufficient for approx. 45 emptying operations of a 200L barrel |
| temperature range | -48 °F to 154 °F |
| Refillable | No |
| Dimensions | Height 240 mm, diameter 120 mm |

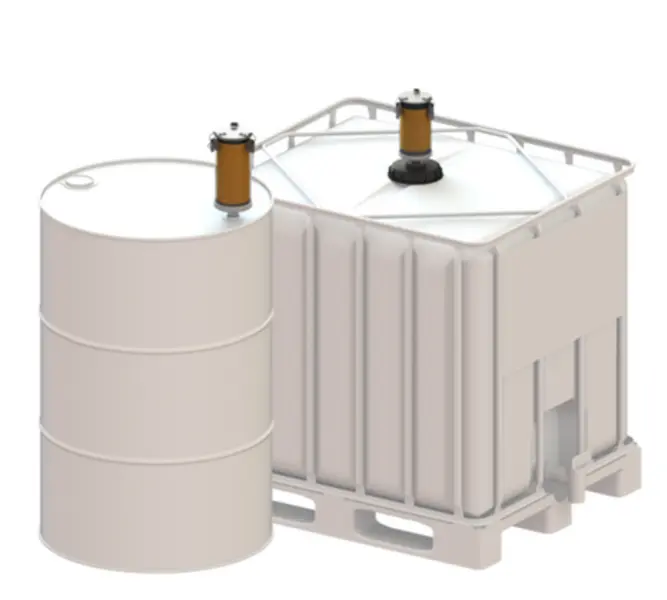

| Application | Barrels, IBCs, storage of hygroscopic and sensitive media |
| Typical applications | Isocyanates, polyols, hydraulic oils, epoxy resins, catalysts |
