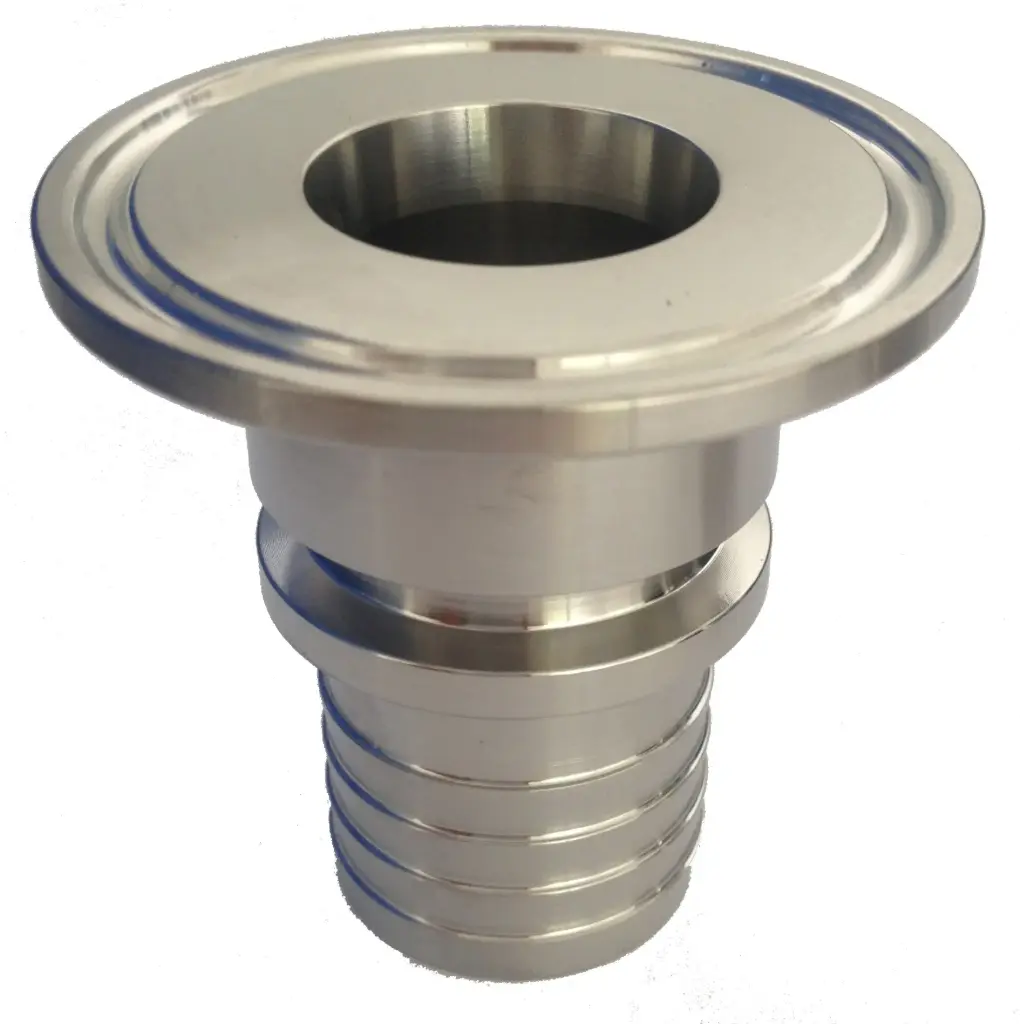

Clamp coupling hose nozzle according to BS4825 stainless steel
Technical specifications
| feature | Execution |
|---|---|
| Regulation | BS4825 (British Standard) |
| Material | Stainless steel 1.4404 (SS) |
| operating pressure | 25 bar |
| connection type | Hose nozzle with retaining collar |
| plate diameter | 25.2–91 mm |
| hose connector | 13–76 mm |
| Notice | Not compatible with DIN 32676 |
Available variants (without DN)
| Plate (mm) | Hose connection (mm) | Material | operating pressure |
|---|---|---|---|
| 25.2 | 13 | 1.4404 | 25 bar |
| 25.2 | 19 | 1.4404 | 25 bar |
| 77.4 | 63 | 1.4404 | 25 bar |
| 91 | 76 | 1.4404 | 25 bar |
benefits
Designed in accordance with BS4825 (British Standard)
Hygienic connection for hose connections
Safety strap for clamp or clamp shell binding
Pressure resistant up to 25 bar
Stainless steel 1.4404 for high corrosion resistance
Note
These hose nozzles are specially manufactured in accordance with BS4825 and are not compatible with clamp systems in accordance with DIN 32676.
