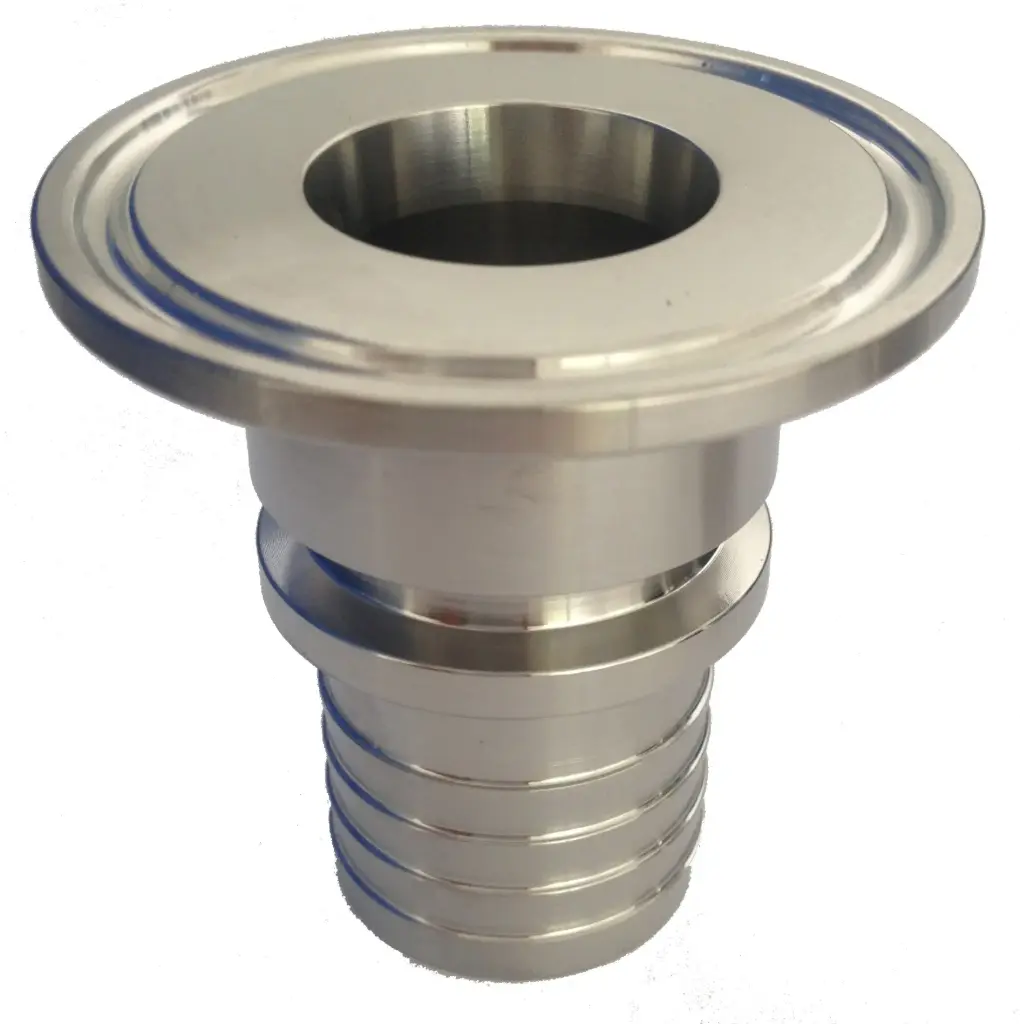

Clamp hose nozzle stainless steel according to ISO 2852
Technical specifications
| feature | Execution |
|---|---|
| Regulation | ISO 2852 |
| Material | Stainless steel 1.4404 (SS) |
| operating pressure | 25 bar |
| connection type | Hose nozzle with retaining collar |
| plate diameter | 50.4–130 mm |
| hose connector | 19 – 101.4 mm |
| compatibility | Not compatible with DIN 32676 |
Available variants
| Plate (mm) | Hose connection (mm) | Material | operating pressure |
|---|---|---|---|
| 50.4 | 19 | 1.4404 | 25 bar |
| 64 | 38 | 1.4404 | 25 bar |
| 77.4 | 51 | 1.4404 | 25 bar |
| 130 | 101.4 | 1.4404 | 25 bar |
benefits
Standard-compliant design in accordance with ISO 2852
Hygienic connection for international standards
Secure hold thanks to safety collar
Pressure resistant up to 25 bar
Stainless steel 1.4404 for high corrosion resistance
Note
Clamp hose nozzles According to ISO 2852, they are not compatible with DIN 32676. They are mainly used in systems manufactured according to international standards.
