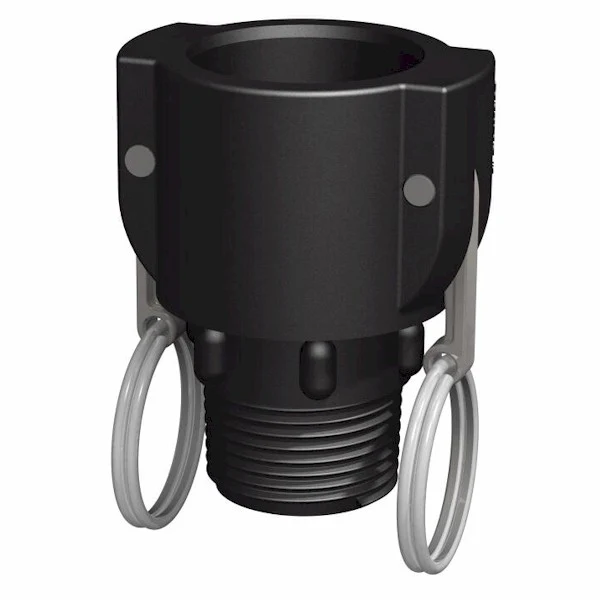

Camlock connector with external thread – universal connection for industry and technology
Camlock boxes with external threads offer a simple and secure way to quickly and tightly connect hose lines or fittings with threaded connections. The box piece corresponds to Camlock Type B and is available in sizes from 3/4 inch to 4 inches.
Made from glass fiber reinforced polypropylene (PP), these couplings are lightweight, sturdy, and resistant to many aggressive media. The integrated EPDM seal ensures reliable sealing in various industrial applications.
Properties
Connection: cam lock Can (type B) on external thread
Material: reinforced PP, corrosion-free and UV-resistant
Seal: EPDM – ideal for water, chemicals, fertilizers, cleaning agents
Sizes: from 3/4 inch to 4 inches
Suitable for Camlock male parts types A, E, F
food safe
Advantages
Quick installation without tools – simple lever principle
Can be universally combined with many Camlock coupling parts
Chemical-resistant and durable – even in aggressive environments
Suitable for industry, agriculture, food, and technology
Pressure-resistant and drip-proof
| DN | Camlock size (inches) | Thread size (inches) |
|---|
| DN 20 | 3/4″ | 1/2″ |
| DN 20 | 3/4″ | 3/4″ |
| DN 25 | 1″ | 1″ |
| DN 25 | 1″ | 1 1/4″ |
| DN 32 | 1 1/2″ | 1 1/4″ |
| DN 32 | 1 1/2″ | 1 1/2″ |
| DN 32 | 1 1/4″ | 1 1/4″ |
| DN 50 | 2″ | 3/4″ |
| DN 50 | 2″ | 2″ |
| DN 80 | 3″ | 3″ |
| DN 100 | 4″ | 4″ |
