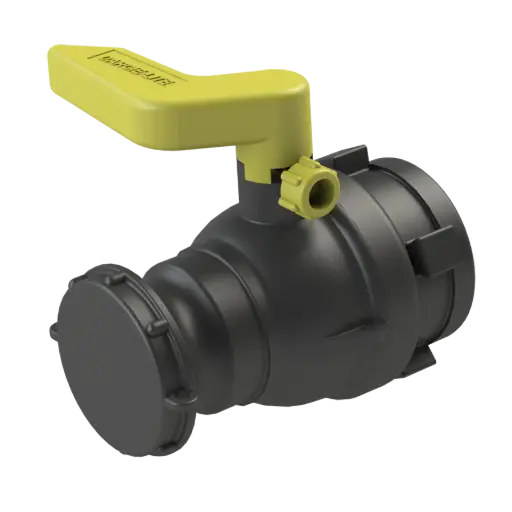

IBC ball valve, female thread to camlock connector, PP
This IBC ball valve connects the outlet of an IBC container to a 2-inch camlock plug (type E). Depending on the version, the ball valve is equipped with an internal thread in S60x6, S75x6, or S80x6. The outlet is standardized as a camlock plug and fits all 2-inch cam lock Couplings. The housing is made of chemical-resistant polypropylene PP and is ideal for industrial, agricultural, and mobile applications.
Technical data
Inlet: choice of internal thread S60x6, S75x6, or S80x6
Output: Camlock plug type E, 2 inches
Housing material: Polypropylene PP
Seal: TPE or NBR depending on version
Handle: Plastic lever, operable from both sides
Temperature range: minus 10 to plus 60 degrees Celsius
Pressure range: up to approx. 4 bar depending on application
Compatibility: Suitable for all IBC containers with corresponding outlet thread
How to use
The ball valve is screwed onto the respective IBC thread and provides a quick connection at the outlet to all 2-inch camlock couplings used in industry, cleaning systems, or mobile applications. It is operated by a hand lever and allows for controlled dosing. The connection is tool-free, secure, and time-saving.
Advantages at a glance
Inlet in S60x6, S75x6, or S80x6 female thread
Output with standardized 2-inch camlock connector type E
Quick coupling and decoupling without tools
Robust PP housing, resistant to many media
Integrated ball valve for safe dosing
Ideal for industry, logistics, workshops, or agriculture
