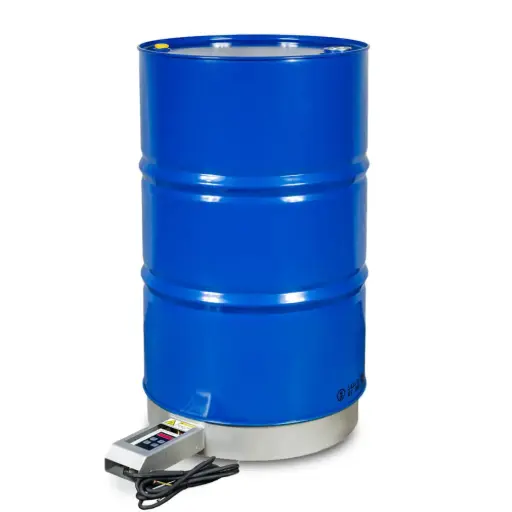

Barrel bottom heater 0°C -120°C

Effective drum bottom heater for heating metal drums from below. Ideal for standard drums up to 200 l and suitable for a wide range of liquids such as water, oils, resins, fats, or diesel. With integrated thermostat for precise temperature control and faster heating in combination with a conventional drum heater.
1,078.40 € 1,078.40 € (zuzügl.19% MwSt)

zuzügl. Versandkosten ( frei ab 150€ Warenwert )
  • container size
Artikelnummer: 101810
Add to cart
container size: 200 Liter Fass
Dokumente
Anleitung_Digitalcontroller.pdf

HS Code: 85168020
Lieferbar: 3-4 Werktage

Technical data – Barrel bottom heater 0–120 °C

featureValue
ApplicationMetal drums up to 200 l
diameter550 mm
Height105 mm
temperature range0–120 °C, adjustable
thermostatDigitherm digital controller
Service900 W
Voltage230 V
heating elementWire element, glass-impregnated silicone heating mat
insulation50 mm high-density rock wool
cable2 m power cable
Weightapprox. 15 kg
Special featuresCan be combined with conventional barrel heaters

benefits

  • Heating from below for even heat distribution

  • Universally suitable for all standard metal drums up to 200 l

  • Digitally adjustable temperature range from 0–120 °C

  • Robust insulation for efficient heat output

  • Can be combined with jacket barrel heaters for faster heating

  • Versatile use for water, oils, resins, greases, wax, adhesives, and more

Note

Only suitable for metal drums. Always observe the maximum permissible temperature for temperature-sensitive media.

Hersteller:

Kuhlmann Electro-Heat A/S
www.kuhlmann-electroheat.com
Tarupvej 51
5210 Odense NV

0045 6612 2325
