Technical specifications
| feature | Value |
|---|---|
| temperature range | 0–120 °C |
| Material | Durable silicone |
| thermostat | Precisely adjustable |

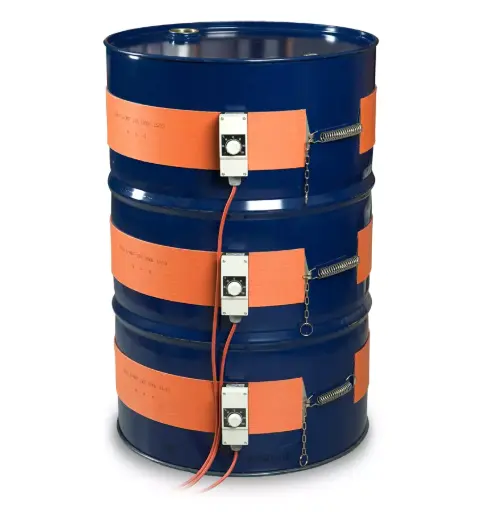

| assembly | Directly on the metal barrel, up to 3 belts per 200 L barrel |
| rated voltage | 230 V |
| Suitable for | Water, oils, diesel fuel, resin, petroleum jelly, wax, fats, butter |
Sizes & Services
| barrel size | Dimensions (mm) | Service | Voltage |
|---|---|---|---|
| 200 L | 1700 × 115 | 1000 W | 230 V |
| 105 L | 1300 × 115 | 800 W | 230 V |
| 50–60 L | 950 × 115 | 500 W | 230 V |
| 25–30 L | 800 × 125 | 300 W | 230 V |
| 200 L | 1700 × 180 | 1500 W | 230 V |
benefits
Robust and durable silicone design
Fast and even heating
Precise thermostat for optimal temperature control
Flexible installation, even for smaller barrel sizes
Suitable for a wide range of industrial applications
Note
Maximum efficiency when combining several heating belts on one barrel. Use only on metal barrels.
