HS Code:
84818099
Lieferbar:
sofort ( 2-3 Werktage )

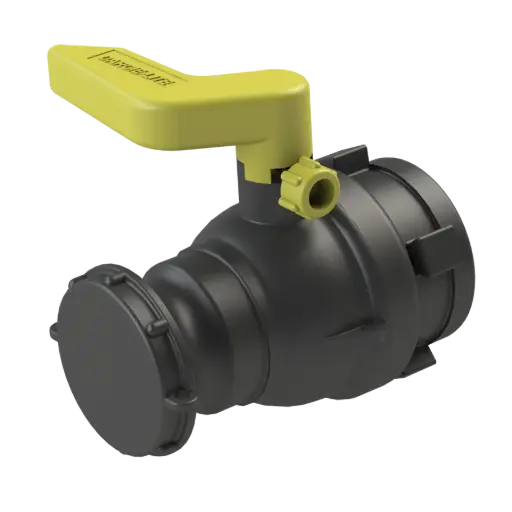

IBC ball valve, female thread to camlock connector, PP
Dieser IBC Kugelhahn verbindet den Auslauf eines IBC Containers mit einem 2 Zoll Camlock Stecker (Typ E). Je nach Variante ist der Kugelhahn mit einem Innengewinde in S60x6, S75x6 oder S80x6 ausgestattet. Der Ausgang ist standardisiert als Camlock Stecker und passt auf alle 2 Zoll Camlock Kupplungen. Das Gehaeuse besteht aus chemikalienbestaendigem Polypropylen PP und ist ideal fuer industrielle, landwirtschaftliche und mobile Anwendungen.
Technical data
Inlet: choice of internal thread S60x6, S75x6, or S80x6
Output: Camlock plug type E, 2 inches
Housing material: Polypropylene PP
Seal: TPE or NBR depending on version
Handle: Plastic lever, operable from both sides
Temperature range: minus 10 to plus 60 degrees Celsius
Pressure range: up to approx. 4 bar depending on application
Compatibility: Suitable for all IBC containers with corresponding outlet thread
How to use
The ball valve is screwed onto the respective IBC thread and provides a quick connection at the outlet to all 2-inch camlock couplings used in industry, cleaning systems, or mobile applications. It is operated by a hand lever and allows for controlled dosing. The connection is tool-free, secure, and time-saving.
Advantages at a glance
Inlet in S60x6, S75x6, or S80x6 female thread
Output with standardized 2-inch camlock connector type E
Quick coupling and decoupling without tools
Robust PP housing, resistant to many media
Integrated ball valve for safe dosing
Ideal for industry, logistics, workshops, or agriculture
Dieses Produkt ist lebensmittelecht, auf Wunsch stellen wir eine Konformitätsbescheinigung aus.
