IBC rapid mixer – adjustable (up to 600 mPa·s, 1000 l IBC)

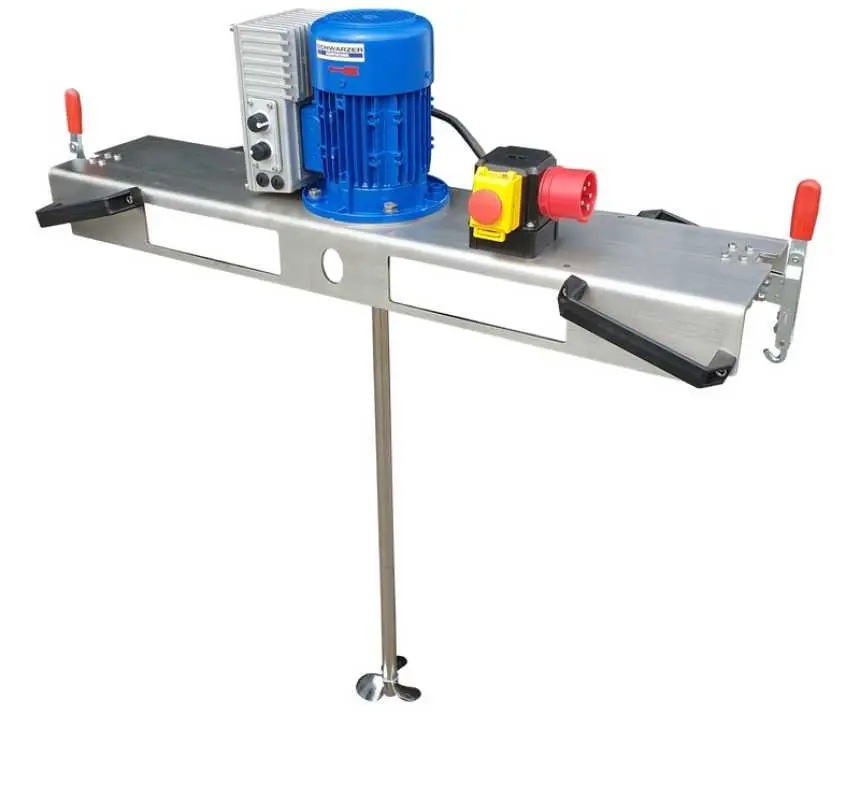

The rapid mixer generates strong turbulence for fast stirring and homogenization. The solid, balanced stirring shaft (non-removable) drives a 3-blade mixing propeller Ø 138 mm (monoblock, highly polished). The forklift crossbar made of 1.4301 stainless steel (4 mm) with two forklift openings, two clamping hooks, and four side carrying handles enables safe, quick handling. A compact frequency converter (IP55) with potentiometer ensures stepless speed control; plug switch with zero voltage release on the crossbar.
Technical specifications
| deployment | Media/Viscosity/Density | Service | rotational speed | Voltage | stirring organ | Shaft | Materials that come into contact with the product | Traverse | Regulation/Protection |
|---|---|---|---|---|---|---|---|---|---|
| 1000-liter IBC | up to 600 mPa·s, up to 1.2 kg/l | 0.75 kW | 0–1410 rpm (VFU), rated 1400 rpm | 1~ 230 V / 50 Hz | 3-blade propeller Ø 138 mm, monoblock, polished | solid, balanced, non-removable | Stainless steel 1.4404 | Stainless steel 1.4301, 4 mm, 2 forklift openings, 2 clamping hooks, 4 handles | Frequency converter IP55, potentiometer; plug switch with zero voltage release |
benefits
Infinitely adjustable for optimal adaptation to medium and process
High mixing performance thanks to 3-blade propeller and 1400 rpm rated speed
