BC rapid mixer – adjustable, 2 mixing propellers (1000 l IBC)

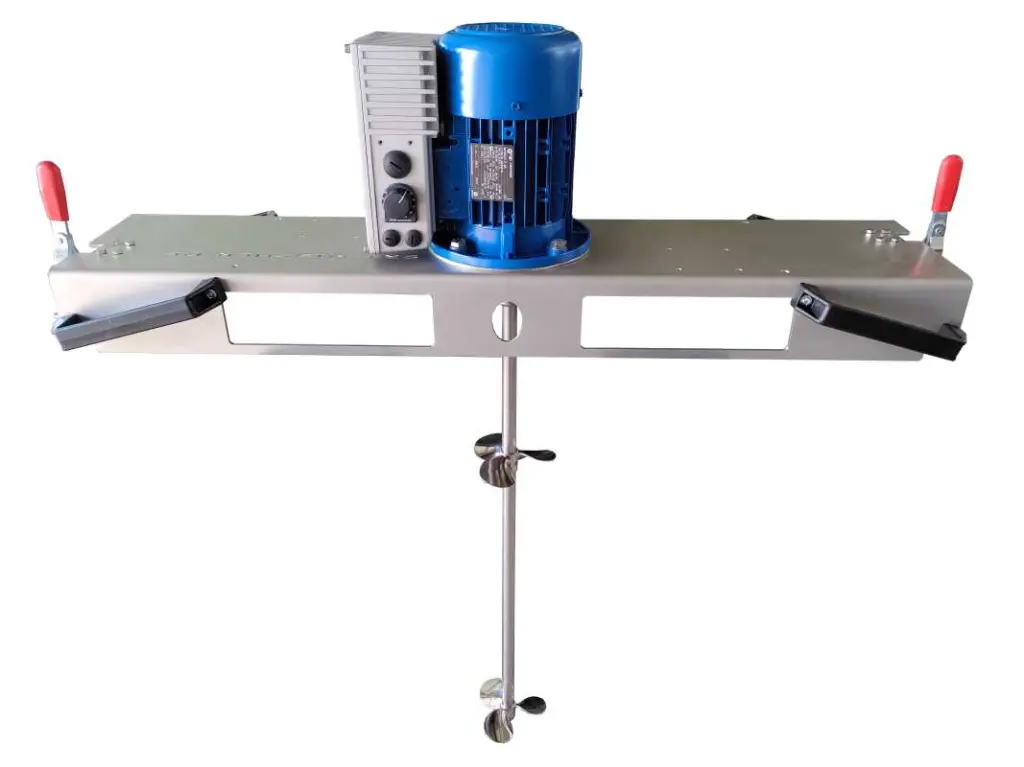

The solid, removable mixing shaft (coupling) is balanced for smooth operation. A 3-blade mixing propeller (Ø 138 mm) is located at the end of the shaft; a second Ø 138 mm propeller can be positioned on the shaft and is height-adjustable. Both propellers are monolithic (cast from a single piece) and highly polished. The stainless steel forklift crossbar (1.4301, 4 mm) has two forklift openings, two clamping hooks, and four side carrying handles. A compact frequency converter (IP55) with potentiometer enables stepless speed control; plug switch with zero voltage release on the crossbar.
Technical specifications
| deployment | Media / Viscosity / Density | Service | speed range | Voltage | agitating shaft | stirring devices | Materials that come into contact with the product | Traverse | Regulation / Protection |
|---|---|---|---|---|---|---|---|---|---|
| 1000-liter IBC | up to 600 mPa·s, up to 1.2 kg/l | 0.75 kW | 0–1410 rpm (0–50 Hz), rated 1400 rpm | 1~ 230 V / 50 Hz | solid, removable, balanced | 2× 3-blade propellers Ø 138 mm (1× shaft end, 1× height-adjustable), monoblock, polished | Stainless steel 1.4404 | Stainless steel 1.4301, 4 mm; 2 forklift openings, 2 clamping hooks, 4 handles | FU IP55 with potentiometer; plug switch with zero voltage release |
benefits
Infinitely adjustable for optimal adaptation to medium and process
High mixing performance thanks to two adjustable 3-blade propellers
Smooth running thanks to balanced, removable shaft
Hygienic design: monoblock propeller, product contact 1.4404
Robust handling with stainless steel crossbeam, tension hooks, and carrying handles
Free delivery within Germany
