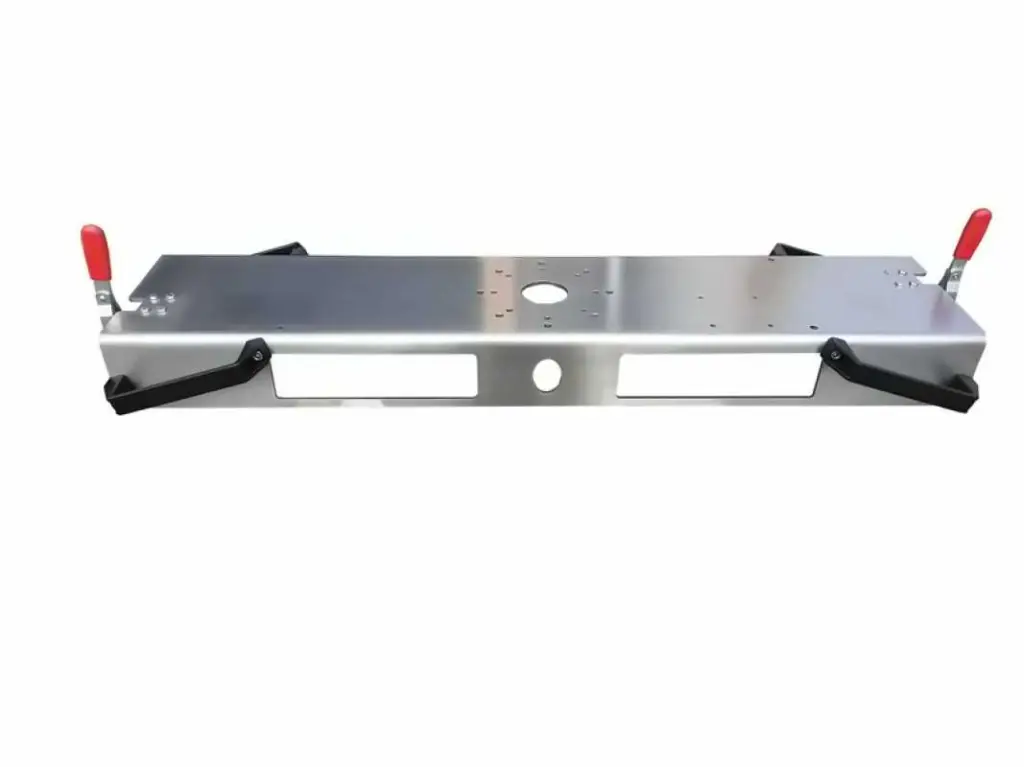

Forklift crossbar – stainless steel for 1000-liter IBC
The crossbeam enables agitators or units to be securely placed and fixed on 1000-liter IBCs. The sturdy stainless steel construction (1.4301) is burr-free, has side carrying handles, and two galvanized quick-release hooks for fast, safe handling. Openings for forklifts or pallet trucks facilitate transport and positioning.
Technical specifications
| feature | Value |
|---|---|
| deployment | 1000-liter IBC (inner frame spacing 960 mm) |
| Material | Stainless steel 1.4301, burr-free blasted |
| height | 100 mm |
| Thickness | 4 mm |
| recordings | Openings for forklifts / lift trucks |
| Bolt circle (IEC) | Ø 160 mm or Ø 200 mm, threaded |
| center hole | Ø 68 mm |
| handling | 2 galvanized quick-release hooks, 4 plastic carrying handles on the sides |
| load capacity | up to 70 kg |
benefits
Quick and secure installation thanks to quick-release hooks
Robust and corrosion-resistant (stainless steel 1.4301)
Ergonomic handling with side carrying handles
Practical forklift/lift truck mounts
Compatible with IEC bolt circle 160/200 mm and center hole Ø 68 mm
Note
Check load capacity, IBC frame dimensions (inside 960 mm), and hole pattern before assembly. Only use the crossbeam on suitable, undamaged IBC frames and secure it in accordance with occupational safety regulations.
