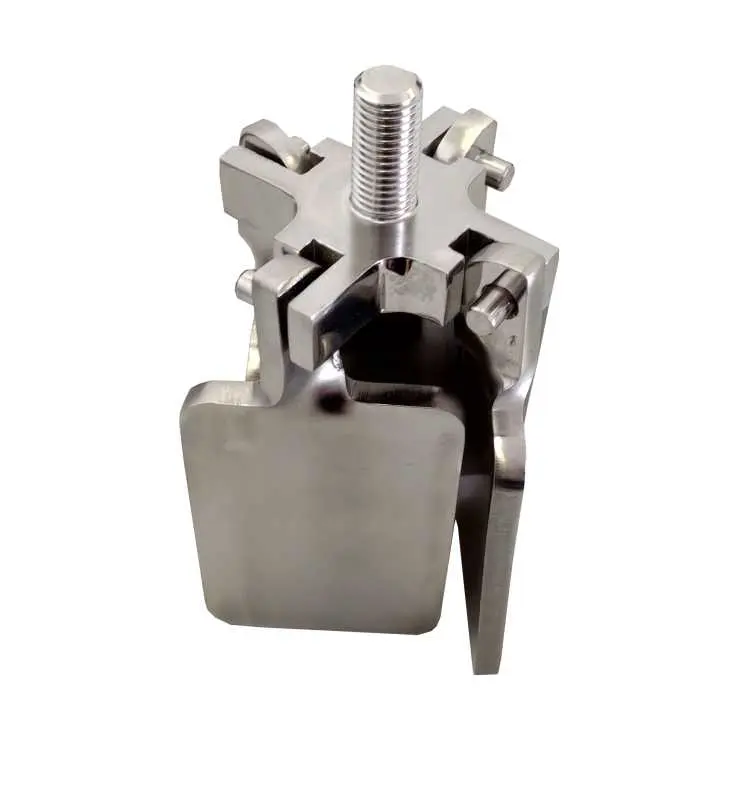

4-arm folding agitator – Ø 350 mm (for container agitators)
The agitator is attached to the shaft end via an M16 threaded pin. The four agitator blades automatically open to their working diameter due to centrifugal force and ensure efficient mixing. The design without removable screws in the product chamber and the tool-free disassembly of the blades enable quick, hygienic cleaning. The 8 mm blade thickness ensures high stability.
Technical specifications
| agitator type | insertion opening | Diameter (folded) | Diameter (unfolded) | Material (product contact) | Fixation | leaf thickness | Max. speed | Special features |
|---|---|---|---|---|---|---|---|---|
| 4-arm folding stirrer | Ø 140 mm (DN 150) | 140 mm | 350 mm | Stainless steel 1.4404 | M16 threaded pin | 8 mm | 300 rpm | Can be dismantled without tools, no screws in the product compartment |
benefits
Easy installation with M16 threaded pin
Automatic opening to Ø 350 mm for high mixing performance
Hygienic design without screws in the product compartment
Tool-free removal of the stirring blades for quick cleaning
Robust thanks to 8 mm blade thickness and 1.4404 stainless steel
