Technical data
| feature | Execution |

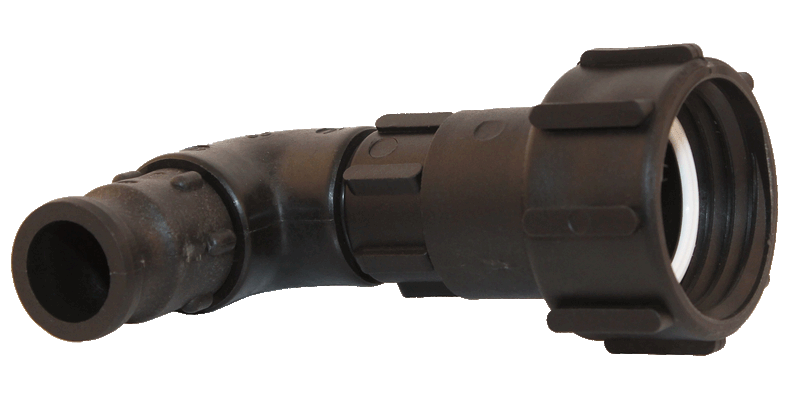

| Connection on the IBC side | S60x6 female thread (DN50) |
| Connection Outlet | Camlock connector 90° |
| Material | Polypropylene (PP), glass fiber reinforced |
| gasket | TPE (thermoplastic elastomer) |
| Execution | Rotatable |
| temperature range | -20 °C to +80 °C |
| Printing range | up to 6 bar |
| Media | Water, AdBlue, various chemicals |
| Color | Black |
Variants
| Variant | Camlock size | connection | Nominal diameter (DN) |
| Version 1 | ¾" | Camlock plug type A ¾" | DN19 |
| Version 2 | 1" | Camlock plug type A 1" | DN25 |
| Version 3 | 1 ¼" | Camlock plug type A 1 ¼" | DN32 |
| Version 4 | 1 ½" | Camlock plug type A 1 ½" | DN40 |
| Version 5 | 2" | Camlock connector type A 2" | DN50 |
Properties
Rotatable 90° design for tension-free installation
Robust, chemical-resistant PP-GF housing
Elastic TPE seal for secure, media-resistant fit
Suitable for all IBCs with S60x6 standard thread
Compatible with Camlock couplings Types B, C, and D
Applications
Chemical and tank technology
Agriculture and AdBlue systems
Water and cleaning applications
Process and supply engineering
