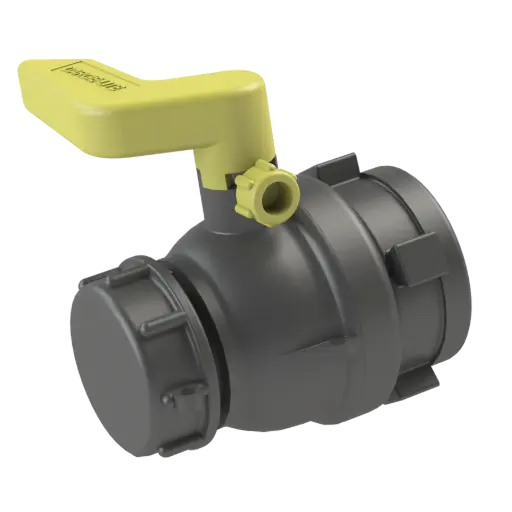

IBC ball valve female thread to S60x6 male thread PP
This polypropylene IBC ball valve is the ideal solution for safe and easy connection to IBC containers with different barrel threads. Depending on the version, the ball valve has an internal thread in S60x6, S75x6, or S80x6 and always offers an S60x6 external thread on the outlet side—suitable for standard IBC accessories such as hose nozzles, camlock adapters, or quick couplings.
Technical data
Inlet: choice of internal thread S60x6, S75x6, or S80x6
Output: S60x6 external thread (standard IBC connection)
Design: 2-piece ball valve housing with lever handle
Material: Polypropylene PP, chemical resistant
Seal: TPE or NBR depending on version
Temperature range: minus 10 to plus 60 degrees Celsius
Pressure range: up to approx. 4 bar, depending on the model
Compatibility: Suitable for IBC containers with different outlet threads
How to use
The ball valve is mounted directly onto the outlet thread of an IBC container with S60x6, S75x6, or S80x6 thread. The outlet with S60x6 external thread allows the connection of common accessories such as taps, adapters, hoses, or distributors. It is operated manually via a plastic lever, which enables simple and safe dosing. Ideal for industry, agriculture, waste disposal, or workshops.
Advantages at a glance
Available with various inlet threads
Output always with standardized S60x6 external thread
Robust PP design for multiple use
Quick to assemble, no tools required
Compatible with IBC accessories and connection systems
Sealed, low-maintenance, and versatile
