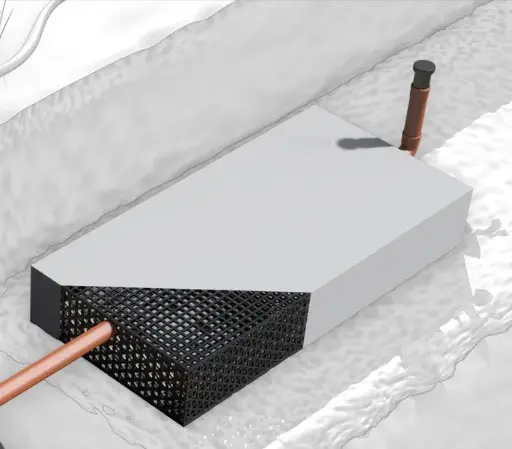

Roth drainage block ready for installation
The Roth Sickerblock is a powerful and flexibly expandable system for controlled rainwater infiltration and retention on private, commercial, or municipal properties. The pre-assembled units, available in 600 or 1200 liter sizes, can be easily connected in series and can be individually dimensioned in accordance with ATV-A 138.
Thanks to its low height, the system is also suitable for shallow installation situations. With a soil cover of at least 800 mm, the drainage block can be driven over by cars. The complete design is encased in geotextile and ready for installation.
Optionally, the system can be expanded with an upstream Roth filter shaft DN 315 and a Roth ventilation unit for DN 100.
Technical data
| Variant | Volume | Dimensions L x W x H (mm) | Weight (kg) |
|---|---|---|---|
| 600 L | 600 L | 1200 x 1200 x 400 | 35 |
| 1200 L | 1200 L | 2400 x 1200 x 400 | 67 |
Features and benefits
Pre-assembled drainage blocks – ready for immediate installation
Passable by cars with 0.80 m of earth cover
Geotextile-coated – no separate wrapping necessary
Infiltration capacity can be flexibly expanded by connecting in series
Low installation depth – ideal for limited space
Optional accessories:
Roth filter shaft DN 315 (filter basket 1 mm, up to 300 m² roof area)
Roth vent and exhaust fan for DN 100, height approx. 500 mm
Made of PE-HD – seamlessly manufactured, permanently leak-proof, and corrosion-free
Complies with municipal and water law requirements
