Roth Package Building Services I without pump module

Roth building services package I without pump module – Complete system for rainwater utilization with flat storage tank, floating outlet, cartridge filter, and inlet calming device. Ideal for combination with an external pump.
2,049.00 € 2,049.00 € (zuzügl.19% MwSt)

zuzügl. Versandkosten ( frei ab 150€ Warenwert )
  • tank capacity
Artikelnummer: 104945
Add to cart
Dokumente
Kundenzeichnung_Paket_Haustechnik_1_Twinbloc_10000L.pdf Kundenzeichnung_Paket_Haustechnik_1_Twinbloc_3500_L.pdf Kundenzeichnung_Paket_Haustechnik_1_Twinbloc_5000_L.pdf Kundenzeichnung_Paket_Haustechnik_1_Twinbloc_7000L.pdf Prospekt Paket Haustechnik I.pdf

HS Code: 39269097
Lieferbar: ca. 1 Woche

Roth Package Building Services I without pump module

The Roth Package Building Services I without pump module is a ready-to-install system for standard-compliant rainwater harvesting in the home, which can be ideally combined with existing or individually selectable pump technology. The included Twinbloc flat storage tank, floating outlet, and cartridge filter ensure high-quality water treatment and supply.

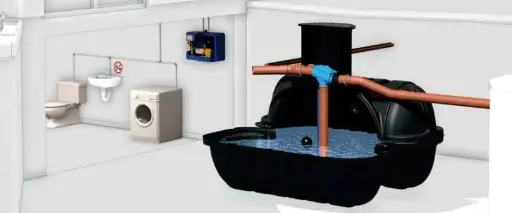

Rainwater is directed from the roof into the storage tank via the downpipe, pre-cleaned by the cartridge filter, and fed in at a reduced flow rate. The floating extraction system ensures that only the water directly below the surface—which is of the highest quality—reaches the pump.

Komponenten im Überblick

Roth Twinbloc flat storage tank

  • Ultra-flat design

  • Made of PE-HD, seamlessly manufactured, 100% impermeable

  • Domschacht DN 600 with walk-on, height-adjustable cover

  • Includes overflow trap with small animal barrier

  • Extendable using KG pipe DN 100

Roth Floating Withdrawal

  • Floating ball, suction filter, and check valve

  • Extraction from the uppermost, clean water layer

  • Connection: 1-inch PE water pipe

Roth expansion package cartridge filters

  • Installation in the dome shaft

  • Mesh size: 0.55 mm

  • Suitable for roof areas up to approx. 150 m²

  • Including flow stabilizer DN 100

  • Reinigbar über den Domdeckel

  • Cover suitable for vehicle traffic optionally available

Technical data for Twinbloc flat storage tanks

ModelVolumeDimensions L x W x H (mm)Maximum installation depth (mm)Weight (kg)
1,500 L1,500 L2350 x 1395 x 695133080
3500 L3500 L2350 x 2300 x 9751675140
5000 L5000 L2460 x 2350 x 9752050190
7000 L2x 35002x 2350 x 2300 x 97516752x 140
10,000 L2 x 50002x 2460 x 2350 x 135020502x 190

Advantages

  • Ideal for integration into existing pump systems

  • Cartridge filter with fine filtration (0.55 mm) integrated into the shaft

  • Floating extraction ensures water of the highest quality

  • Flat storage with low earth excavation requirements

  • Expandable to a total volume of 10,000 liters

  • Easy to maintain, earth-stable, and permanently sealed

  • Compatible with Roth rainwater accessories and pump technology
