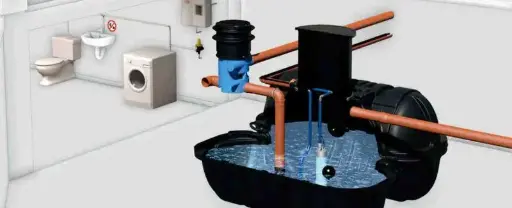

Roth Package Building Services II with pump module and replenishment
Das Roth Haustechnikpaket II ist ein leistungsstarkes Komplettsystem fuer die Hausversorgung mit Regenwasser – speziell konzipiert fuer Faelle, in denen groessere Entfernungen zwischen Zisterne und Verbrauchsstellen überbrueckt werden müssen. Herzstueck des Systems ist die Tauchdruckpumpe Combipress mit integrierter schwimmender Entnahme und externem Druckschalter, kombiniert mit dem Roth Nachspeisemodul RON Komfort für die automatische, DIN-gerechte Trinkwassernachspeisung.
When a consumer is turned on, the pump switches on automatically and switches off again when the consumer is turned off. The system is ideal for using rainwater in the home and garden – energy-efficient, reliable, and convenient.
Komponenten im Überblick
Roth Twinbloc flat storage tank
Ground-stable, flat design, shallow installation depth
Material: PE-HD, seamless construction, 100% opaque
Domschacht DN 600 with walk-on cover (height-adjustable)
Overflow trap with small animal barrier as standard
Extendable using KG pipe DN 100
Roth Combipress submersible pressure pump
Multi-stage pump for installation in storage tanks
Integrated floating extraction
Automatic control via external pressure switch
Connection for drinking water replenishment directly at the pump
Max. flow rate: 6 m³/h
Max. delivery height: 55 m
Roth RON Comfort supplementary heating module
Control center for automatic drinking water replenishment
Free outlet in accordance with DIN for hygienic safety
Direct feed into the pump
Integrated fuel gauge
Roth earth filter
External installation in the inlet area
Connection of up to two roof surfaces
Mesh size of filter screen: 0.55 mm
Suitable for areas up to approx. 350 m²
Easy maintenance
Roth flow control
Prevents sediment from being stirred up in the storage tank
Protects pump and consumers
Can be used directly in the memory
Technical data for Twinbloc flat storage tanks
| Model | Volume | Dimensions L x W x H (mm) | Maximum installation depth (mm) | Weight (kg) |
|---|---|---|---|---|
| 1,500 L | 1,500 L | 2350 x 1395 x 695 | 1330 | 80 |
| 3500 L | 3500 L | 2350 x 2300 x 975 | 1675 | 140 |
| 5000 L | 5000 L | 2460 x 2350 x 975 | 2050 | 190 |
| 7000 L | 2x 3500 | 2x 2350 x 2300 x 975 | 1675 | 2x 140 |
| 10,000 L | 2 x 5000 | 2x 2460 x 2350 x 1350 | 2050 | 2x 190 |
Advantages
Complete system for supplying homes with rainwater
Particularly suitable when there is a large distance between the tank and the consumer
Automatic control and replenishment via replenishment module
Hygienic safety through free drainage in accordance with DIN
Efficient submersible pressure pump with high delivery pressure
Expandable to 10,000 liters storage capacity
Easy to maintain thanks to external ground-mounted filter
All components are Roth-compatible and have been tried and tested over many years.
