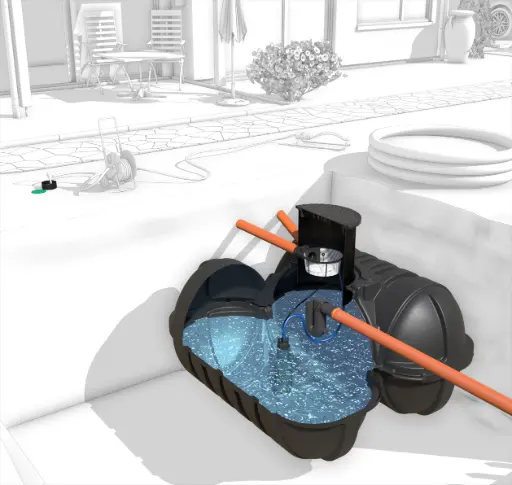

Roth Package Garden with Submersible Pump
The Roth Garden Package combines all the essential components for professional use of rainwater in the garden. The pre-assembled components are optimally coordinated and guarantee safe, automated operation—with high usable volume, minimal maintenance, and maximum convenience.
Herzstück ist der Roth Twinbloc Flachspeicher aus PE-HD, erdstabil, 100 % dicht und in verschiedenen Volumengroessen von 1500 bis 10000 Litern erhaeltlich. Die Ausstattung umfasst eine integrierte Tauchpumpe mit elektronischer Steuerung, einen wartungsarmen Gartenfilter sowie ein praktisches Entnahme-Set mit Spiralschlauch und Kugelhahn.
Komponenten im Überblick
Twinbloc flat storage tank (PE-HD, seamlessly manufactured, expandable)
Domschacht DN 600 with walk-on cover (height-adjustable)
Submersible pump with flow monitor, pressure sensor, and dry-run protection
Roth garden filter (mesh size 1 mm, for roof areas up to 150 m²)
Roth extraction set with shaft, 12.5 m spiral hose, and ball valve
Overflow siphon with small animal barrier included as standard
Car-accessible covers optionally available as accessories
Connection of multiple storage tanks using KG pipe DN 100
Technical data submersible pump
| feature | Value |
|---|---|
| Max. flow rate | 5.7 m³/h |
| Maximum system pressure | 3.6 bar |
| Max. system height | 20 m |
| Maximum immersion depth | 8 m |
Technical data for Twinbloc flat storage tanks
| Model | Volume | Dimensions L x W x H (mm) | Maximum installation depth (mm) | Weight (kg) |
|---|---|---|---|---|
| 1,500 L | 1,500 L | 2350 x 1395 x 695 | 1330 | 80 |
| 3500 L | 3500 L | 2350 x 2300 x 975 | 1675 | 140 |
| 5000 L | 5000 L | 2460 x 2350 x 975 | 2050 | 190 |
| 7000 L | 2x 3500 | 2x 2350 x 2300 x 975 | 1675 | 2x 140 |
| 10,000 L | 2 x 5000 | 2x 2460 x 2350 x 1350 | 2050 | 2x 190 |
Advantages
Complete package: storage tank, pump, filter, extraction
Self-regulating submersible pump with dry-run protection
Compatible with roof areas up to approx. 150 m²
Flat design – low earth volume required
Easy to maintain thanks to accessible dome shaft
Expandable through modular memory connection
Ground-stable and permanently secure installation
Alle Komponenten langjährig bewährt und Roth-kompatibel
