TW couplings
Stainless steel TW couplings – robust tanker couplings for demanding applications
TW couplings (tank truck couplings) made of stainless steel in accordance with DIN EN 14420-6 are the ideal solution when maximum resistance to aggressive media, pressure and temperature is required.
The standardised bayonet system enables safe, tight and quick coupling and uncoupling of hoses, pipes and tank systems. Reliable even under heavy use, vibration or changing operating conditions.
AISI 316 (1.4404) stainless steel is characterised by its high corrosion resistance and hygienic surface. This makes these couplings suitable even for demanding media such as chemicals, foodstuffs or pharmaceutical liquids. Investing in TW couplings made of stainless steel ensures the longevity of your systems.
Technical features
- Material: AISI 316 stainless steel (1.4404)

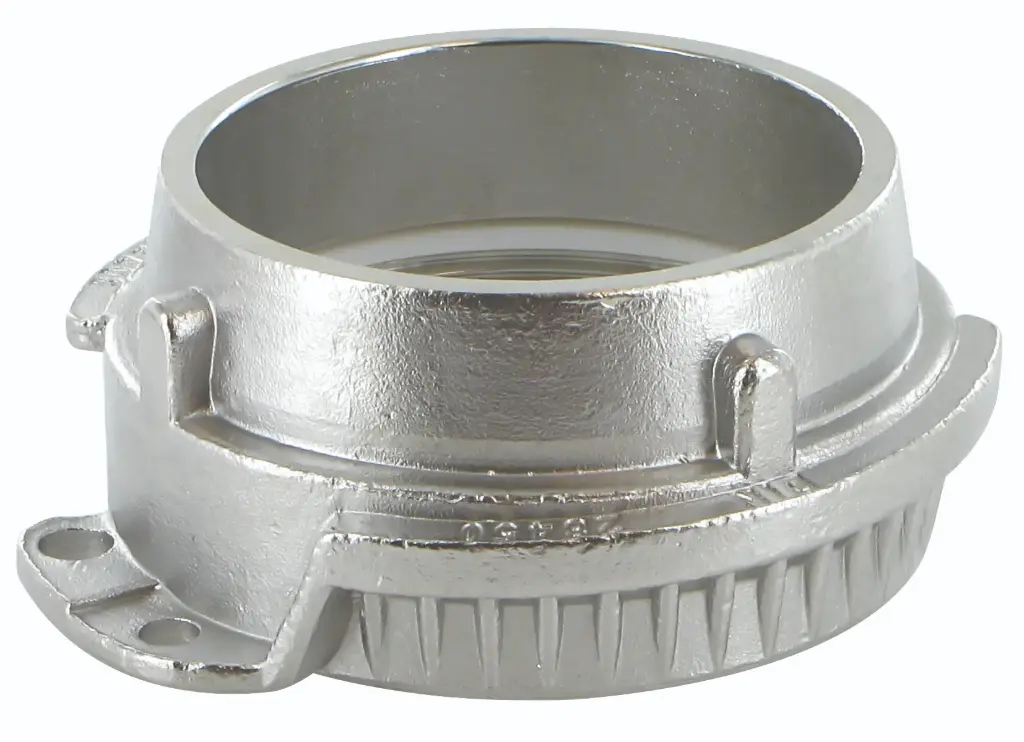

- Connection variants: female thread, male thread
- Seals: NBR, EPDM, FKM or PTFE, depending on application
- Sizes: typically from DN 40 to DN 100
- Compatible with DIN EN 14420-6
- Operating pressure: up to approx. 16 bar, depending on size and medium

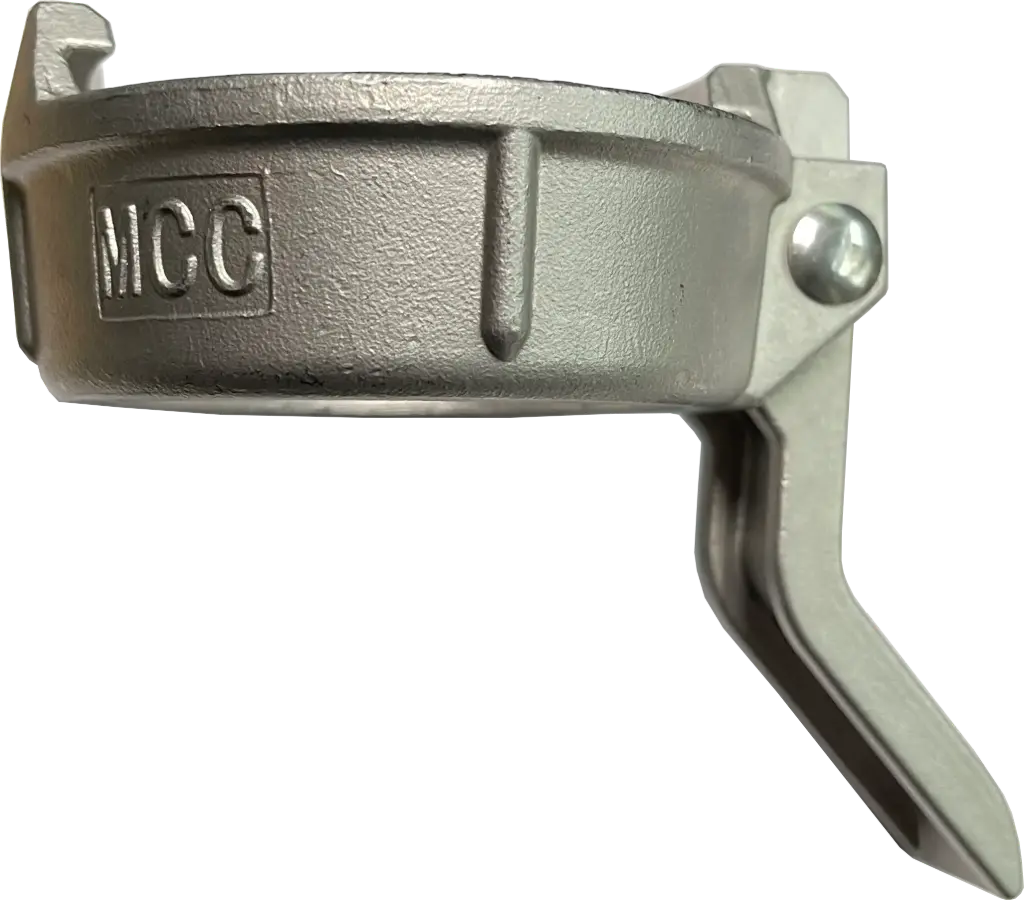

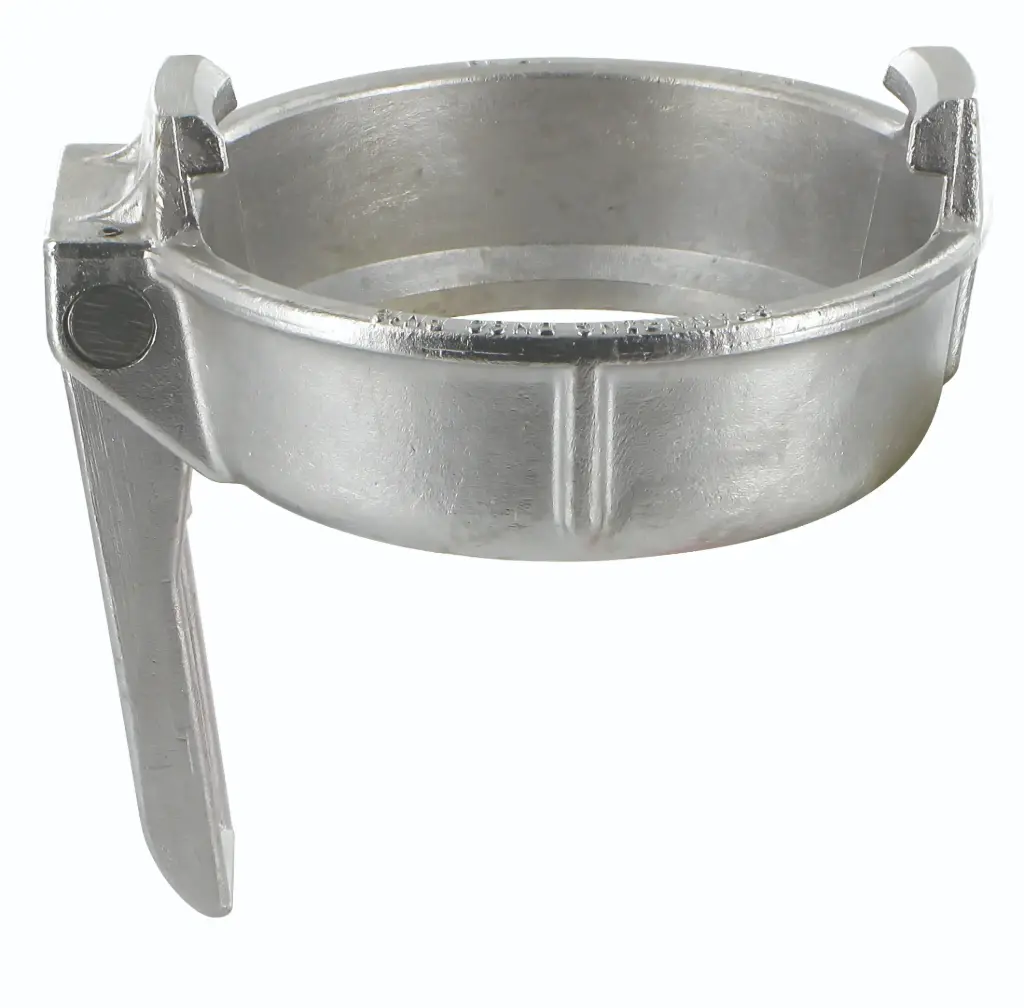

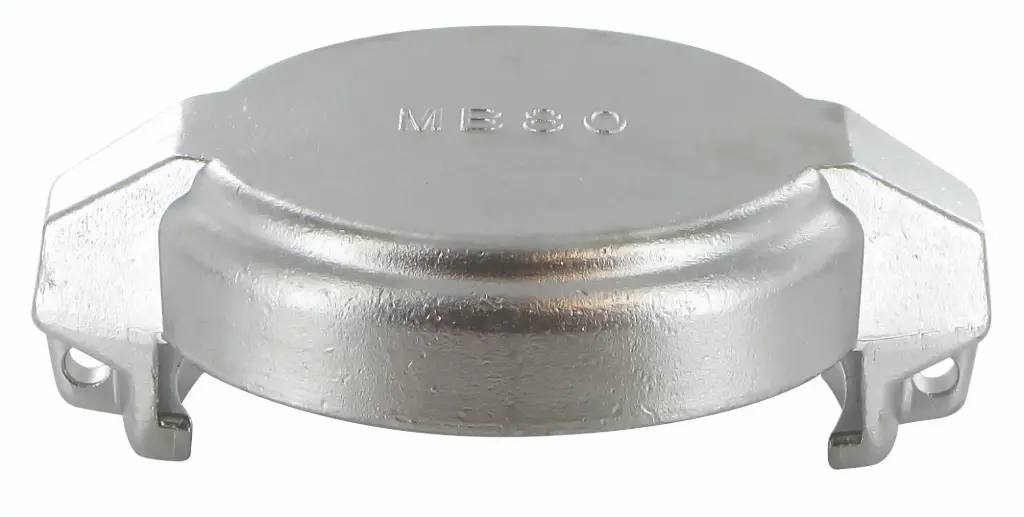

- Optionally available with lever lock or dust cover
benefits
- Proven quick-release principle with bayonet lock
- Corrosion-resistant and media-resistant, even with aggressive liquids
- Simple and quick handling without tools
- Temperature resistant up to approx. 200 °C, depending on the seal
- High safety thanks to robust and durable construction
- Suitable for sensitive and hygienically demanding applications
Typical areas of application
- Chemical industry and hazardous substance handling
- Food and pharmaceutical industry
- Tank and container technology for aggressive or high-purity media
- Marine and offshore sectors
- Agriculture, fuels and irrigation technology
- Workshops, construction sites, emergency power generators
For maximum reliability in critical areas, we recommend our TW couplings made of stainless steel.
